HDPE Cross Laminated Film Plastic Surface Material for Self-Adhesive Polymer Modified Bitumen Waterproof Roofing Membrane

Name: HDPE Cross Laminated Film Plastic Surface Material for SelfAdhesive Polymer Modified Bitumen Waterproof Roofing Membrane
Brand: Upass
Price: 0.32 USD

China HDPE Cross Laminated Film Plastic Surface Material for Self-Adhesive Polymer Modified Bitumen Waterproof Roofing Membrane wholesale

Place of Origin : Shanghai, China

Brand Name : Upass

Model Number : SDM

MOQ : 50000 square meters

Price : $0.32/square meters 50000-99999 square meters

Processing Service : Cutting

Product name : Strong Cross Laminated HDPE Release Film

Application : Waterproofing Membranes, tapes, labels

Thickness : 0.1mm-0.26mm

Color : Blue, Green, Black, Grey, White, Green/Black, Grey/Black

Certificate : ISO9001:2018

Contact Now

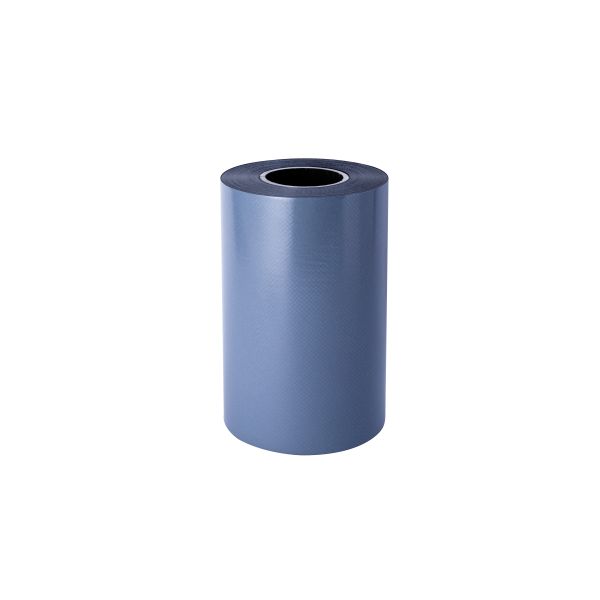

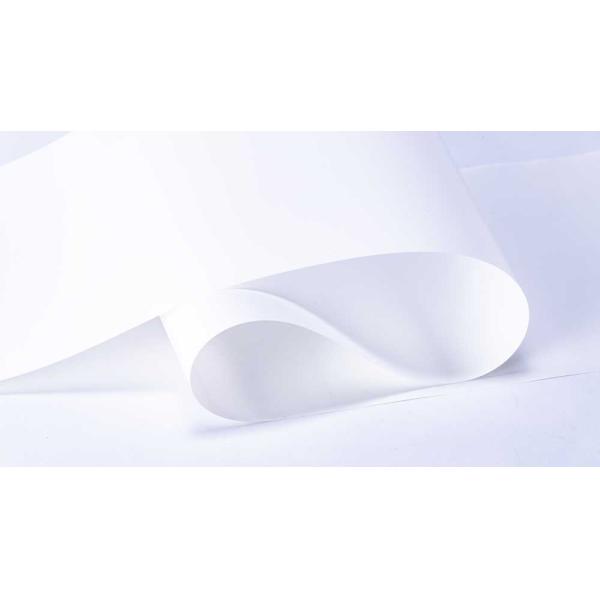

HDPE Cross Laminated Film for Waterproof Roofing Membrane

Description:

HDPE cross laminate film is an advanced waterproof material manufactured through special cross-lamination technology using high-density polyethylene (HDPE). Its unique crisscross structure delivers exceptional tensile strength, puncture resistance and dimensional stability, making it ideal for construction waterproofing, civil engineering and environmental protection applications.

Key Features:

Superior Strength: Balanced orientation strength (MD & CD).
Perfect Waterproofing: 100% anti-seepage
Excellent Weather Resistance: UV stabilized, wide temperature range, 50+ years service life
Eco-Friendly: Food-grade raw materials, non-toxic
Easy Installation: Lightweight and flexible, compatible with heat welding and adhesive bonding

Typical Applications:
✓ Roof waterproofing systems ✓ Basement moisture barriers ✓ Landfill liners
✓ Tunnel waterproofing ✓ Artificial lake containment ✓ Biogas digester sealing

As a core material for modern waterproofing solutions, our HDPE cross laminate membranes are ISO 9001 certified, thicknesses with customizable options. Contact us today for free samples and technical support!

Parameter:

NO.	Item		Performance
			SDM-30	SDM-60
1	Tensile Property	Tensile Strength/Mpa ≥	30	50
		MaxF/(N/50mm) ≥	200	300
		Elongation as MaxF/% ≥	200
		Elongation at break/% ≥	250
2	Sample number of no broken tested by free-falling dart method ≥		8
3	Tear Strength(Nail Shank)/N ≥		60
4	Angle Tear Strength/N ≥		25
5	Thermal Stability		120 ℃,10min, No bulb, No deformation
6	Cryogenic Flexibility ℃		-35℃, No fissure, No delamination
7	Thermal Ageing	Appearance	No bulb, No deformation
		Subsequent MaxF/% ≥	80
		Elongation at MaxF/% ≥	200
		Elongation at break/% ≥	200
8	Artificial Weathering	Appearance	No bulb, No deformation
		Subsequent MaxF/% ≥	70
		Elongation at MaxF/% ≥	180
		Elongation at break/% ≥	180

1.Single and double-sided silicon coating optional 2.Corona discharge 3.Release force detection 4.Easy to tear and pull

5.Tear resistant, UV resistant

6.Customized thickness

HDPE Cross Laminated Film Plastic Surface Material for Self-Adhesive Polymer Modified Bitumen Waterproof Roofing Membrane

HDPE Strong Cross Laminated Film

PE Film

Anti-UV Film

Anti slip texture optional

Single or double-sided silicon coating

Weather resistant for 20 years

Upass is headquartered in Shanghai and has three major production factory bases in Jiangsu, Hunan Province.

The company adopts professional European film manufacturing equipment and processes, mainly producing various polymer functional film products. The related products are widely used in fields such as building waterproofing, tape&labels, various packaging, medical sanitary materials, intelligent dimming(PDLC Smart Film), automotive electronics, etc, Especially in the field of waterproofing applications, it holds an important position in the domestic and international markets.

Upass is currently an executive director unit of the China Building Waterproof Association, a vice chairman unit of the Modified Plastics Professional Committee of the China Plastics Association.and an AAA credit enterprise of the China Plastics Association.

The company always adheres to the concept of technological innovation to promote sustainable development, empowering and assisting the high-quality and green development of its industry. At present, the company has over 120 independent intellectual property rights and is a "specialized, refined, and innovative" small giant enterprise.

Application

Strong Cross Laminated Film Application:
► Surface/base material for CONSTRUCTION WATERPROOFING
► Surface/base material for SELF-ADHESIVE TAPES
► Surface/base material for UNDERLAYMENT

Large venues

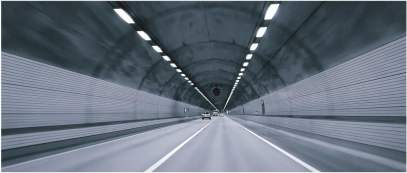

Subway,Tunnel

Large waterproof buildings

Airport

Highway

Roof

Recommend Products

Why Choose Us

Our company actively participates in international exhibitions worldwide, showcasing cutting-edge products and solutions. From Asia to Europe, the Americas to the Middle East, we consistently impress global clients with our innovation and professionalism.
Over the years, we’ve earned widespread acclaim from overseas customers, who praise our high-quality offerings and exceptional service. These exhibitions strengthen our global partnerships and drive business growth.
Join us at the next event—experience why customers worldwide trust and recommend us!

Packing&Delivery

We offer a wide range of professional packaging solutions tailored to your specific needs—including shock-proof,
moisture-resistant, and customized designs—to ensure your products arrive safely worldwide. Our expertise in handling
oversized,and high-value items minimizes transit risks and reduces costs.

Whether by air, sea, or land, we provide reliable logistics support to meet global standards. Trusted by international clients, we deliver worry-free shipping with optimal protection.

Certifications

FAQ

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you provide samples ? is it free or extra ?
A2: Yes, we could offer A4 sample for free charge but if you need in roll,we can offer 100-200m/roll for free, but shipping cost
need you to paid.
Q3: How long is your delivery time?
A3: Depends on your quantity. Generally it is about 30 days for 20GP container.
Q4: How to pay for your goods?
A4: By L/C, by T/T (30% deposit before production, 70% balance before loading).
